Authentication in Redpanda Console

This feature requires an enterprise license. To get a trial license key or extend your trial period, generate a new trial license key. To purchase a license, contact Redpanda Sales.

If Redpanda Console has enterprise features enabled and it cannot find a valid license, it redirects you to the license expiration landing page, and all other access is restricted.

This topic describes how to enable authentication in Redpanda Console and how it integrates with the Kafka, Admin, and Schema Registry APIs in Redpanda.

Authentication in Redpanda Console lets users log in and optionally forward their credentials to the connected cluster. This ensures API requests run under the user’s identity.

Redpanda Console supports the following authentication methods:

  • OIDC (OpenID Connect): Integrates with external identity providers (IdPs) for single sign-on (SSO).

  • Basic authentication: Uses traditional username and password credentials.

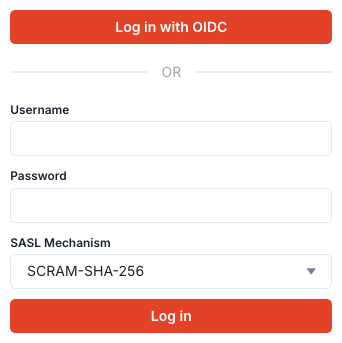

login

How authentication works

Redpanda Console can authenticate to Redpanda APIs in two ways:

  • User impersonation: Uses the same credentials you log in with to authenticate API requests. This ensures accurate audit logs and unified identity enforcement.

  • Static service account credentials: Uses preconfigured credentials defined in the Redpanda Console configuration file. Useful when impersonation is disabled or RBAC needs to be separated from Redpanda identities.

Upon login, Redpanda Console generates a secure session with a JSON Web Token (JWT), signed by the authentication.jwtSigningKey. The JWT can be stored as a secure cookie and is used to authenticate API requests.

For OIDC-based login flows, Redpanda Console reuses the OAuth 2.0 access token from the identity provider (IdP) to authenticate to Redpanda’s Kafka and HTTP APIs. These access tokens must be in JWT format to be compatible with Redpanda’s SASL/OAUTHBEARER authentication.

Some IdPs, such as Google, issue opaque access tokens that are not JWTs. While these tokens work for logging in to Redpanda Console (the ID token is a JWT), they cannot be used for impersonation with the Kafka API. In such cases, impersonation must be disabled, and Redpanda Console must be configured to use static service account credentials instead.

Redpanda Console authenticates users and then authorizes their access based on the impersonation mode and configured RBAC or ACLs.
flowchart TD
    A((User authenticates with<br/>OIDC or SASL credentials)) --> B[Redpanda Console]

    B --> C["Re-use OIDC token or basic credentials<br/>(if configured)"]
    B --> D[Get credentials<br/>from Console config]

    C --> E[Kafka API]
    C --> F[Admin API]
    C --> G[Schema API]
    E & F & G --> H((Redpanda))

    D --> J[Kafka Connect API]
    D --> L[Git]

Prerequisites

  • You must have at least one superuser in Redpanda.

  • The authentication method used in Redpanda Console must match the configuration of the Kafka API:

  • If using OIDC: You must have SASL/OAUTHBEARER authentication configured for the Kafka API.

  • If using basic authentication: You must have SASL/SCRAM authentication configured for the Kafka API.

Learn how to configure authentication for Redpanda.

Enable authentication

Redpanda Console supports enabling both OIDC and basic authentication simultaneously. If both are enabled, users can choose how to log in.

Enable OIDC authentication

When you enable OIDC authentication, Redpanda Console uses an external IdP to authenticate users. This allows for single sign-on (SSO) and centralized user management.

Redpanda and Redpanda Console require OAuth 2.0-compliant JWT tokens for user authentication. When using OIDC, your IdP must issue JWTs. Redpanda Console uses these tokens to authenticate to Redpanda APIs through SASL/OAUTHBEARER or Bearer headers.

authentication:
  jwtSigningKey: "<secret-key>" (1)
  useSecureCookies: false (2)
  oidc:
    enabled: true (3)
    issuerUrl: "https://login.microsoftonline.com/a5da3be7-35c1-44ff-b6e8-b3b755686ae2/v2.0" (4)
    clientId: "<oidc-client-id>" (5)
    clientSecret: "<oidc-client-secret>" (6)
    additionalScopes:
      - "<scope>" (7)
    issuerTls:
      enabled: true (8)
      caFilepath: "/path/to/ca.pem"
      certFilepath: "/path/to/issuer-cert.pem"
      keyFilepath: "/path/to/issuer-key.pem"
      insecureSkipTlsVerify: false
    redirectUrl: "http://localhost:8080/auth/callbacks/oidc" (9)
    accessType: "offline" (10)
    prompt: "consent" (11)
    principalMapping: "$.sub" (12)
1 Required. Secret key for signing JWTs. Must be at least 32 characters. Store securely. You can also use the AUTHENTICATION_JWTSIGNINGKEY environment variable.
2 Recommended in production. Marks cookies as secure.
3 Required. Enables OIDC authentication.
4 Required. URL of the OIDC identity provider (IdP).
5 Required. The client ID from your IdP.
6 Required. The client secret from your IdP. You can also use the AUTHENTICATION_OIDC_CLIENTSECRET environment variable.
7 Requested scopes. Some IdPs such as Azure Entra ID require additional scopes to request OAuth 2.0-compliant tokens.
8 Optional. TLS configuration for secure connections to the IdP. Configure TLS only if you require mTLS or use a self-signed certificate.
9 Optional. Redirect URI registered with the IdP. This URI must point to the /auth/callbacks/oidc path in Redpanda Console. If not set, Console constructs the URL from the request. Configure this option explicitly if you’re using HTTP path rewrites.
10 Optional. Controls whether a refresh token is requested. offline (default) requests a refresh token. Set to online to disable refresh token requests.
11 Optional. Determines how the authorization prompt appears. Use consent (default) to force re-consent. Other options include none and select_account. Some IdPs require consent to issue a refresh token.
12 Optional. Extracts and optionally transforms a claim from the OIDC token to use as the user’s identity in Redpanda Console role bindings. The default is "$.sub", which uses the sub (subject) claim from the token. This value is then compared to the name field in your authorization.roleBindings configuration. For full syntax and transformation examples, see Transform identities with principal mappings.
For any secret values, use environment variables instead of hardcoding them in the configuration file. For example, use AUTHENTICATION_OIDC_CLIENTSECRET for the client secret.

OIDC limitations

  • Redpanda requires JWT-formatted access tokens (not ID tokens) for Kafka API authentication using SASL/OAUTHBEARER. Access tokens issued by some IdPs, such as Google, are opaque and not supported.

  • The rpk CLI does not support OIDC login.

  • Redpanda Console cannot assign roles to OIDC principals. Roles must be assigned through rpk.

  • Redpanda requires OIDC principals to be set as superusers to access the Admin API. Granular authorization is not supported.

  • The rpk CLI does not support the SASL/OAUTHBEARER mechanism for deploying data transforms. Use SASL/SCRAM instead.

Supported identity providers

You can use any OIDC-compliant IdP with Redpanda Console. Here are common providers:

Provider Example issuerUrl

Okta

https://<okta-domain>/oauth2/default

Microsoft Entra ID (Azure AD)

https://login.microsoftonline.com/<tenant-id>/v2.0

Keycloak

https://<keycloak-host>/realms/<realm>

GitHub (Enterprise)

https://github.com/login/oauth

Some IdPs, such as Google, issue opaque access tokens that are not JWTs. While these tokens work for logging in to Redpanda Console (the ID token is a JWT), they cannot be used for impersonation with the Kafka API. In such cases, impersonation must be disabled, and Redpanda Console must be configured to use static service account credentials instead.

For example, this is how to configure Redpanda Console with Entra ID:

authentication:
  jwtSigningKey: vazxnT+ZHtxKslK6QlDGovcYnSjTk/lKMmZ+mHrBVE+YdVDkLgSuP6AszAKe9Gvq
  basic:
    enabled: true
  oidc:
    enabled: true
    issuerUrl: "https://login.microsoftonline.com/<tenant-id>/v2.0"
    clientId: "<client-id>"
    clientSecret: "<client-secret>"
    redirectUrl: "http://localhost:8080/auth/callbacks/oidc"
    accessType: "offline"
    prompt: "consent"
    additionalScopes:
      - "api://<client-id>/entraid.v2-access-tokens" (1)
1 In Entra ID, scopes are required to explicitly request OAuth 2.0-compliant access tokens. See Microsoft documentation for more information.

Connect clients to Redpanda

When using OIDC, clients authenticate to Redpanda using OAuth 2.0 access tokens (JWTs). These tokens are issued by your identity provider (IdP) and must be refreshed before they expire. Token refresh can be handled in different ways depending on the Kafka client library. For example, with KafkaJS, use the oauthBearerProvider option to provide a token refresh function.

Enable basic authentication

To configure basic authentication:

authentication:
  jwtSigningKey: "<secret-key>" (1)
  useSecureCookies: true (2)
  basic:
    enabled: true (3)
1 Required. Secret key for JWTs. Must be at least 32 characters.
2 Recommended in production. Marks cookies as secure.
3 Required. Enables username/password login.

Connect clients to Redpanda

When using basic authentication, clients authenticate to Redpanda using a SASL/SCRAM username and password. The credentials must match a user configured in the Redpanda cluster.

Most Kafka client libraries support SASL/SCRAM out of the box. You must configure the client with:

  • sasl.mechanism: One of SCRAM-SHA-256 or SCRAM-SHA-512

  • sasl.username: The Redpanda username

  • sasl.password: The corresponding password

Configure API authentication

After enabling authentication, you must configure how Redpanda Console authenticates to each Redpanda API: Kafka, Admin, and Schema Registry.

Choose one method per API:

  • User impersonation: Uses the login credentials of the current user.

  • Static credentials: Uses preconfigured credentials of a superuser to communicate with Redpanda, and role bindings to control access in Redpanda Console for logged in users.

Redpanda Data recommends user impersonation so that access control is fine-grained and centralized within Redpanda. This way, audit logs are also more accurate, as they reflect the actual user identity.

When using OIDC with static credentials, Redpanda Console authenticates to Redpanda as the OIDC client itself (usually a service principal). In this case, Redpanda evaluates access based on the sub claim in the token. Ensure you grant ACLs for your principals. For help creating ACLs, see Access Control Lists.

Kafka API examples

This section provides examples of how to configure authentication for communicating with the Kafka API from Redpanda Console. You can choose between user impersonation or static credentials.

User impersonation

This option is useful when you want to use the same login credentials to authenticate Kafka API requests in Redpanda. This ensures accurate audit logs and enforces unified identity.

kafka:
  brokers: ["broker1:9092"]
  sasl:
    enabled: true
    impersonateUser: true

Static credentials with SCRAM

This option is useful when you want to use basic authentication. Redpanda Console uses the provided credentials for authentication.

kafka:
  brokers: ["broker1:9092"]
  sasl:
    enabled: true
    impersonateUser: false
    username: "console-superuser"
    password: "superuser-password"
    mechanism: "SCRAM-SHA-256"
authorization:
  roleBindings:
  - roleName: viewer
    users:
      - loginType: basic
        name: "matt"

Static credentials with OIDC (token acquired at runtime)

This option is useful when you want to use OIDC. This configuration instructs Redpanda Console to fetch an OAuth 2.0 access token at runtime using the client credentials grant flow.

kafka:
  brokers: ["broker1:9092"]
  sasl:
    enabled: true
    impersonateUser: false
    mechanism: OAUTHBEARER
    oauth:
      clientId: "<oidc-client-id>" (1)
      clientSecret: "<oidc-client-secret>" (2)
      tokenEndpoint: "https://login.microsoftonline.com/<tenant-id>/oauth2/v2.0/token" (3)
      scope: "api://<oidc-client-id>/.default" (4)
1 Client ID registered with the identity provider (IdP).
2 Client secret associated with the client ID. Store securely using an environment variable, such as KAFKA_SASL_OAUTH_CLIENTSECRET.
3 OAuth 2.0 token endpoint URL provided by the IdP.
4 Requested scope to authorize access. Required by some IdPs, such as Azure Entra ID.

Static credentials with OIDC (pre-acquired token)

This option is suitable when a token is issued externally and injected into the environment (for example, through CI/CD, Vault, or other automation workflows). Redpanda Console does not attempt to refresh or renew the token.

kafka:
  brokers: ["broker1:9092"]
  sasl:
    enabled: true
    impersonateUser: false
    mechanism: OAUTHBEARER
    oauth:
      token: "<static-jwt-token>" (1)
1 A valid OAuth 2.0 JWT. Redpanda Console uses this token when authenticating to Kafka. To avoid hardcoding sensitive data, provide this value using the KAFKA_SASL_OAUTH_TOKEN environment variable.

Static credentials with OIDC (token from file)

This option is useful when running Redpanda Console in Kubernetes, where a service account token is mounted to the Pod filesystem. Redpanda Console reads this token at startup and uses it for authentication.

Redpanda Console does not monitor the token file for changes after startup. To ensure the token is refreshed, restart the Console periodically or implement a sidecar that triggers restarts on token rotation.

kafka:
  brokers: ["broker1:9092"]
  sasl:
    enabled: true
    impersonateUser: false
    mechanism: OAUTHBEARER
    oauth:
      tokenFilepath: "/var/run/secrets/kafka/serviceaccount/token" (1)
1 Path to a file containing a valid OAuth 2.0 JWT token. Redpanda Console reads this file at startup and uses its contents as the access token.

Schema Registry API examples

This section provides examples of how to configure authentication for communicating with the Schema Registry API from Redpanda Console. You can choose between user impersonation or static credentials.

User impersonation

This option is useful when you want to use the same login credentials to authenticate API requests in the Schema Registry. This ensures accurate audit logs and enforces unified identity.

schemaRegistry:
  urls: ["http://broker1:8081"]
  authentication:
    enabled: true
    impersonateUser: true

Static credentials with basic auth

This option is useful when you want to use basic authentication. Redpanda Console uses the provided credentials for authentication.

schemaRegistry:
  urls: ["http://broker1:8081"]
  authentication:
    enabled: true
    impersonateUser: false
    basic:
      username: "console-superuser"
      password: "superuser-password"
authorization:
  roleBindings:
  - roleName: editor
    users:
      - loginType: basic
        name: "matt"

Static credentials with OIDC bearer token

This option is useful when you want to use OIDC but do not want to implement a custom token refresh mechanism. Redpanda Console uses a pre-fetched token for authentication.

schemaRegistry:
  urls: ["http://broker1:8081"]
  authentication:
    enabled: true
    impersonateUser: false
    bearerToken: "<pre-fetched-access-token>"
authorization:
  roleBindings:
  - roleName: editor
    users:
      - loginType: oidc
        name: "<sub-from-token>"

You can supply a static bearer token here, but this token must be refreshed manually before it expires. For automatic token acquisition, configure a background token refresher or consider using impersonation where possible.

Admin API examples

This section provides examples of how to configure authentication for communicating with the Admin API from Redpanda Console. You can choose between user impersonation or static credentials.

User impersonation

This option is useful when you want to use the same login credentials to authenticate API requests in the Admin API. This ensures accurate audit logs and enforces unified identity.

redpanda:
  adminApi:
    enabled: true
    urls: ["http://broker1:9644"]
    authentication:
      impersonateUser: true

Static credentials with basic auth

This option is useful when you want to use basic authentication. Redpanda Console uses the provided credentials for authentication.

redpanda:
  adminApi:
    enabled: true
    urls: ["http://broker1:9644"]
    authentication:
      impersonateUser: false
      basic:
        username: "console-superuser"
        password: "superuser-password"
authorization:
  roleBindings:
  - roleName: admin
    users:
      - loginType: basic
        name: "matt"

Static credentials with OIDC bearer token

This option is useful when you want to use OIDC but do not want to implement a custom token refresh mechanism. Redpanda Console uses a pre-fetched token for authentication.

redpanda:
  adminApi:
    enabled: true
    urls: ["http://broker1:9644"]
    authentication:
      impersonateUser: false
      bearerToken: "<pre-fetched-access-token>"
authorization:
  roleBindings:
  - roleName: admin
    users:
      - loginType: oidc
        name: "<sub-from-token>"
